SMMS-e

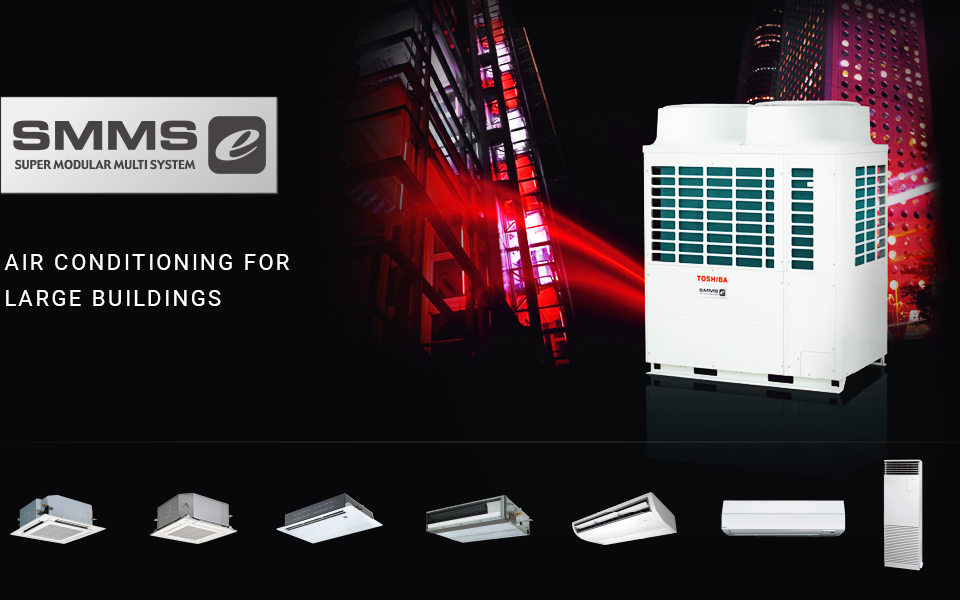

Toshiba Air Conditioning's SMMS-e is designed for large buildings. Developed under the concept of three “Es” — Excellence, Expansion and Enhancement — it offers large capacity of up to 22HP on a single module and up to 60HP in a single interconnected system, with up to 64 connected indoor units. SMMS-e incorporates revolutionary hands-free Wave Tool technology that allows contactless commissioning and diagnostics to be carried out using a smart phone application, without ever having to access the cover of the outdoor unit.

FEATURES

EXCELLENCE

GREATER ENERGY EFFICIENCY PERFORMANCE

Realized over 7.00 ESEER for all of capacity range thanks to adopt the high energy efficient new DC twin rotary compressor with various technologies.

[Image] GREATER ENERGY EFFICIENCY PERFORMANCE

EXPANSION

SINGLE UNIT CAPACITY EXPANSION AND PIPING DESIGN FLEXIBILITY

SMMS-e comes with 3 new larger capacity units, producing up to 22HP on a single module platform.
Piping capability can provide more benefits for the system design, the installation flexibility and the installation cost.

[Image] SINGLE UNIT CAPACITY EXPANSION AND PIPING DESIGN FLEXIBILITY

EXPERIENCE

NEW WIRELESS COMMISSIONING AND OPERATION DATA CHECKING SYSTEM

With SMMS Wave Tool, data from outdoor unit can be read and written directly on your smart phone without the needs of connecting PC or opening cabinet.

[Image] NEW WIRELESS COMMISSIONING AND OPERATION DATA CHECKING SYSTEM

LINE UP

OUTDOOR UNITS

STANDARD MODEL

  • [Image] 8, 10, 12HP
    8, 10, 12HP
  • [Image] 14, 16HP
    14, 16HP
  • [Image] 18, 20, 22HP
    18, 20, 22HP
  • [Image] 24HP
    24HP
  • [Image] 26, 28HP
    26, 28HP
  • [Image] 30, 32HP
    30, 32HP
  • [Image] 34, 36, 38HP
    34, 36, 38HP
  • [Image] 40, 42, 44HP
    40, 42, 44HP
  • [Image] 46, 48HP
    46, 48HP
  • [Image] 50, 52, 54HP
    50, 52, 54HP
  • [Image] 56, 58, 60HP
    56, 58, 60HP

HIGH EFFICIENCY MODEL

  • [Image] 20, 22HP20, 22HP
  • [Image] 36HP36HP
  • [Image] 38HP38HP
  • [Image] 40HP40HP
  • [Image] 42, 44HP42, 44HP
  • [Image] 54HP54HP

INDOOR UNITS

  • [Image] 4-way cassette
    4-way cassette
  • [Image] Compact 4-way cassette
    Compact 4-way cassette
  • [Image] 2-way cassette
    2-way cassette
  • [Image] 1-way air discharge cassette
    1-way cassette
  • [Image] Concealed duct
    Concealed duct
  • [Image] Concealed duct high static pressure
    Concealed duct high static pressure
  • [Image] Slim duct
    Slim duct
  • [Image] Ceiling
    Ceiling
  • [Image] High wall
    High wall
  • [Image] Console
    Console
  • [Image] Floor standing cabinet
    Floor standing cabinet
  • [Image] Floor standing concealed
    Floor standing concealed
  • [Image] Floor standing
    Floor standing
  • [Image] Air to air heat exchanger with DX-coil
    Air to air heat exchanger with DX-coil

REFERENCES

American International School

  • Ho Chi Minh City, Vietnam
  • SMMS-e total capacity : 1,172HP
  • Number of outdoor unit : 60
  • Number of indoor unit : 353
[Image] American International School

District 8 office & apartment

  • Jakarta, Indonesia
  • SMMS-e total capacity : 11,052HP
  • Number of outdoor unit : 643
  • Number of indoor unit : 3,299
[Image] District 8 office & apartment
