SMMS-u

Toshiba Air Conditioning's SMMS-u has been designed for large buildings. Developed under the concept of three “u” — Universal, Unrivalled and Usability — It offers large capacity of up to 24HP on a single module, and up to 120HP in a single interconnected system. It has thousands of combination patterns with up to 128 connected indoor units.
SMMS-u with the innovative Triple rotary compressor and the larger heat exchanger it has transformed to a better capability design in compact chassis.
A new defrost technology achieves the better comfort for users. SMMS-u offers serviceability by the newly integrated advanced service tools. These allow obtaining technical data with easy access from both outdoor units and indoor units.

FEATURES

UNIVERSAL

Space efficient design and configuration flexibility

Up to 24HP on a single module
Up to 5 units combinations
Up to 120HP in single configuration system
Up to 128 connectable indoor units

[Image] Five ODUs to make available 120HP

Available thousands of combination patterns

[Image] Combination examples

UNRIVALLED

Superior performance and efficiency beyond

The innovative Triple rotary compressor
Outstanding performance

[Image] Unrivalled Compressor

*A video on YouTube will be played. YouTube is the service provided from other company. Please follow the terms of use in YouTube.

USABILITY

Unparalleled integrated solutions and upgradability

Comprehensive Service tools. Free to choose between the "Wave Tool Advance" using Smartphone NFC connection or the link adapter connected to the outdoor or indoor unit.

[Image] Comprehensive Service Tools

LINE UP

OUTDOOR UNITS

STANDARD MODEL

  • [Image] 8,10,12,14HP
    8,10,12,14HP
  • [Image] 14A,16,18,20,22,24HP
    14A,16,18,20,
    22,24HP
  • [Image] 26,28HP
    26,28HP
  • [Image] 30,32,34,36,38HP
    30,32,34,36,
    38HP
  • [Image] 40,42,44,46,48HP
    40,42,44,46,
    48HP
  • [Image] 50,52HP
    50,52HP
  • [Image] 54,56,58,60,62HP
    54,56,58,60,
    62HP
  • [Image] 64,66,68,70,72HP
    64,66,68,70,
    72HP
  • [Image] 74,76HP
    74,76HP

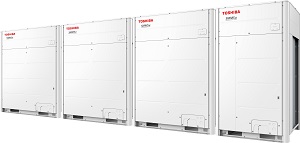

  • [Image] 78,80,82,84,86HP
    78,80,82,84,
    86HP

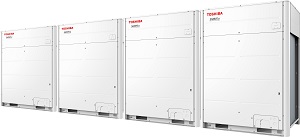

  • [Image] 88,90,92,94,96HP
    88,90,92,94,
    96HP
  • [Image] 98,100HP
    98,100HP
  • [Image] 102,104,106,108,110HP
    102,104,106,
    108,110HP

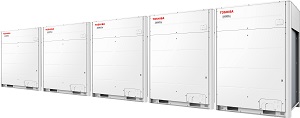

  • [Image] 112,114,116,118,120HP
    112,114,116,
    118,120HP

INDOOR UNITS

  • [Image] 4-way cassette
    4-way cassette
  • [Image] 4-way cassette
    4-way cassette
  • [Image] Compact 4-way cassette
    Compact 4-way cassette
  • [Image] 2-way cassette
    2-way cassette
  • [Image] 1-way air discharge cassette
    1-way cassette
  • [Image] 1-way air discharge cassette
    1-way cassette
  • [Image] Concealed duct
    Concealed duct
  • [Image] Concealed duct high static pressure
    Concealed duct high static pressure
  • [Image] Slim duct
    Slim duct
  • [Image] Ceiling
    Ceiling
  • [Image] High wall
    High wall
  • [Image] High wall
    High wall
  • [Image] Console
    Console
  • [Image] Floor standing cabinet
    Floor standing cabinet
  • [Image] Floor standing concealed
    Floor standing concealed
  • [Image] Floor standing
    Floor standing
  • [Image] Fresh air intake
    Fresh air intake
  • [Image] Air to air heat exchanger with DX-coil
    Air to air heat exchanger with DX-coil
  • [Image] Hot water module (Mid temperature)
    Hot water module (Mid temperature) *For 50Hz

REFERENCES

[Image]Chuetsuunsou Co.,Ltd.

Chuetsuunsou Co.,Ltd. Japan, Tsubame Logistics Office
